IN-STOCK NOW, NEW TCI 36″ x 70′ Triple Stack Portable Transfer Conveyors
Triple Stack Portable Transfer Conveyors
Every job is different, and sometimes you need more conveyor length. When flexibility is necessary, look no further than our available “Piggybacks” and Triple Stacked Portable Transfer conveyors. You’ll be able to transport 160’ on a single load of “Piggybacks,” and for the biggest jobs, you can move 240’ of length with our Triple Stacked units. Forget the crane and roll the conveyors off using a loader for quick and easy setup. With up to 42” widths, these units also feature convenient travel lights, air brakes, and mud flaps.
When planning your next operation, you want to be certain that you have the most durable and efficient conveyors on the market. Whether you are looking to rent or purchase the equipment needed for your project, IEG is your trusted dealer for all of the top-quality conveyor options by TCI Manufacturing. We’ll equip you to get the job done!
We maintain inventory of a large selection of portable conveyors with both road travel and efficient operational setup in mind – we have the option that you need, when you need it.

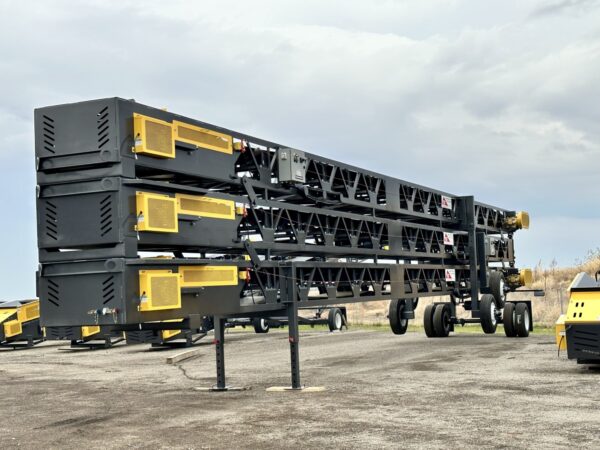

TCI 36” x 70’ Triple Stack Portable Transfer Conveyor
To include the following:
Drive Arrangement – Head drive with a manual take-up
Main Frames – 30” deep trusses
Top Conveyor Undercarriage/Axle – Pin-lock height adjustment with single 11:00 x 22.5 tires Middle Conveyor Undercarriage/Axle – Fixed height with single 11:00 x 22.5 tires
Bottom Conveyor Undercarriage/Axle – Fixed height with dual 11:00 x 22.5 tires, air brakes, lights, and mud flaps
Crank Down Landing Gear – One set on the bottom conveyor
Roll-On/Roll-Off Feature – For easy transport and operational set-up
Capacity – 750 TPH of 100 lb./cu. ft. material at 7 ft. of lift/6° incline
Belt Speed – 350 FPM
Drive Packages – Dodge size 4 TAII reducers with 20 HP, 230/460 V, 3 Ph., 1800 RPM, Nema Premium Efficiency motors
Drive Pulleys – 16” x 38” drums with 3/8” herringbone lagging on TG&P shafts
Tail Pulleys – 14” x 38” self-cleaning wing-type on TG&P shafts
Drive Bearings – Dodge 3-7/16” SCM
Tail Bearings – Dodge 2-15/16” SCM
Take-Ups – TCI screw-type
Loading Areas – CEMA C5 troughing idlers on 1’ centers
Troughing Idlers – CEMA C5 on 4’ centers
Return Idlers – CEMA C5 on 10’ centers with return roll guards
Belting – 3-ply, 330#, 3/16” x 1/16”, Grade 2, skived and laced with mechanical fasteners Primary Belt Cleaners – Martin Pit Vipers
Receiving Hoppers – From 1/4” plate, 5’ long with adjustable rubber flashing
Towing – 5th wheel kingpin and in-pit tow eyes
E-Stops – Bulk Pro Systems Model SS-2
Guarding – Tail pulleys, V-belt drives, and all pinch points
Electric Switchgears – On each conveyor – Nema 4 enclosure, main breaker with handle, starter, illuminated e-stop, push/pulls, alarm button, wiring from the panel to the motor, and 150’ of extra S/O cord with cord wrap brackets
Paint – (2 coats) 2-part urethane – TCI Grey Metallic with guarding Safety Yellow
