NEW In-Stock now TCI 36″ x 60′ Radial Stacker Conveyor
Radial Stacking Conveyors
When planning your next operation, you want to be certain that you have the most durable and efficient conveyors on the market. Whether you are looking to rent or purchase the equipment needed for your project, IEG is your trusted dealer for all of the top-quality conveyor options by TCI Manufacturing. We’ll equip you to get the job done!
We have available both stationary and portable stackers that are designed for durability and ease of use. We maintain inventory of a large selection of portable conveyors with both road travel and efficient operational setup in mind – we have the option that you need, when you need it.

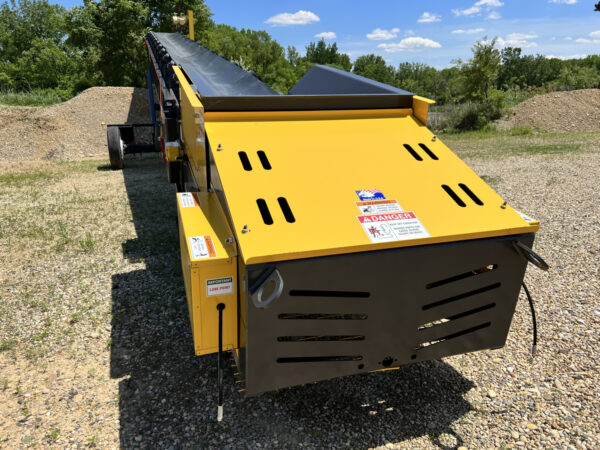

TCI 36” x 60’ Radial Stacker
To include the following:
- Drive Arrangement – Head drive with a manual take-up
- Main Frame – 30” deep truss
- Undercarriage – Manual raise with pin-lock height adjustment
- Axle Assembly – Non-powered radial axle with single 11:00 x 22.5 tires and mud flaps
- Capacity – 700 TPH of 90 lb./ft.³ material at 22 ft. of lift/18° incline
- Belt Speed – 350 FPM
- Drive Package – Dodge size 5 TAII reducer with a 25 HP, 230/460 V, 3 Ph., 1800 RPM, Nema Premium Efficiency motor
- Drive Pulley – 18” x 38” drum with 3/8” herringbone lagging on a turned, ground and polished shaft
- Tail Pulley – 16” x 38” self-cleaning wing-type on a turned, ground and polished shaft
- Drive Bearings – Dodge 3-7/16” SCM
- Tail Bearings – Dodge 3-7/16” SCM
- Take-Ups – TCI screw-type
- Loading Area – CEMA B5 troughing idlers on 1’ centers
- Troughing Idlers – CEMA B5 on 4’ centers
- Return Idlers – CEMA B5 on 10’ centers with return roll guards on the lower (3) idlers
- Belting – 2-ply, 220#, 3/16” x 1/16”, Grade 2, skived and laced with mechanical fasteners
- Receiving Hopper – From 1/4” plate, 5’ long with adjustable rubber flashing
- Towing – 5th wheel kingpin and in-pit tow eyes
- Tail Pivot – Pivot base
- Guarding – Tail pulley, V-belt drive, and all pinch points
- Paint – (2 coats) 2-part urethane – TCI Grey Metallic with guarding Safety Yellow
Options
- Primary Belt Cleaner – Martin Pit Viper
- Electric Switchgear*
* Electric switchgear option includes: Nema 4 enclosure, Square D starter, main breaker with handle, illuminated e-stop, push/pull buttons, hour meter, alarm, wiring from the panel to the motor, and 150’ of S/O cord
