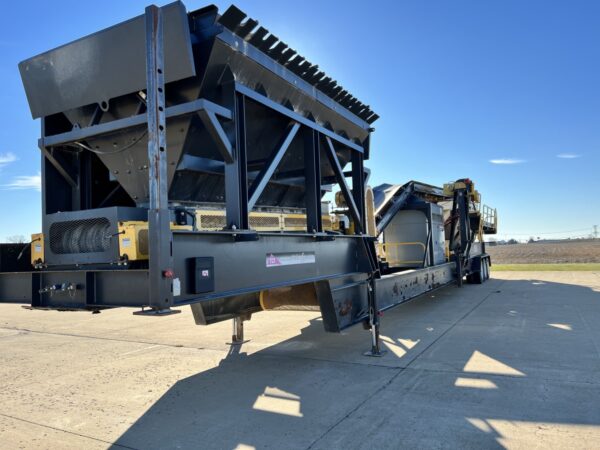

CURRENTLY ON RENT (February 2022) TCI Manufacturing “PSB” Portable Screen & Bin
- 8′ X 14′ HD Feed Hopper
- 197 hp John Deere generator
- 6’x 18′ High-Frequency Screen – see details below:
High-Frequency Screens – often referred to as ‘PEP screens’ – provide a new solution for material sized below 3/8”. Our inventory of top-quality screens from TCI Manufacturing have an industry-leading capacity for dry material separation. When it’s time to put them into production, our service-oriented team is there to help you understand how to set up and utilize this sophisticated technology.
Features:
- Aggressive 3600 RPM applied directly to the screen media for optimal separation
- Faster screen media changes with a tool-free ratchet system
- Increase production by removing fines in pre-screening or post-screening applications
- VFD to control vibration speed
- Highest capacity in the industry for fines removal
- Fine material is best screened with a faster speed and small stroke/throw
Full Specs:
3 Axle Trailer Chassis*
- Fabricated from a combination of heavy duty wide flange beam, structural channel and square tube.
- Triple axle, complete with hutch suspension and springs, air brakes, lights, (12) 11:00 x 22.5 radial tires on unimount style rims, hydraulically operated lifting legs and a 5th wheel hitch.
8’ x 14’, 13 Cubic Yard Feed Hopper*
- Fabricated from 1/4″ A36 steel, and a combination of structural angle and wide flange beam, with 1/4″ AR400 bolt-in liner on the bottom half of the hopper for wear protection.
- Hydraulically operated self-relieving grizzly from 1 3/4″ round bars set for 6” openings.
- Wing walls on both end of the hopper and a fill wall for customer to build a ramp for loading.
36” x 15’ Channel Frame Under Hopper Feed Conveyor*
- Drive Package- Dodge size #5 TA II reducer with a 15 HP motor
- Head Pulley – 18” x 38” with 3/8” herringbone lagging on a 3-15/16” shaft
- Tail Pulley – 16” x 38” self-cleaning wing-type on a 3-7/16” shaft
- Bearings – S2000
- Idlers – CEMA C 5”
- Belting – 3-ply, 330#, 3/16 x 1/16, Grade 2, skived
- Belt Cleaner – Martin Pit Viper
36” x 48’ Channel Frame Screen Feed Conveyor*
- Drive Package – Dodge size #4 TA II reducer with a 15 HP motor
- Backstop – Included
- Head Pulley – 16” x 38” with 3/8” herringbone lagging on a 3-7/16” shaft
- Tail Pulley – 14” x 38” self-cleaning wing-type on a 2-15/16” shaft
- Head Bearings – Dodge 3 7/16” S2000
- Tail Bearings- Dodge 2 15/16” SCM
- Idlers – CEMA C 5”
- Belting – 2-ply, 220#, 3/16 x 1/16, Grade 2, skived
- Belt Cleaner – Martin Pit Viper
6’ x 18’ Double Deck Ultra Frequency Screen.
- 6’ x 18’ double deck high frequency screen with both decks as a full double deck. “Pipe- hinge” hinge suspension for variable angle operation.
- Thirteen variable amplitude 3600 rpm electrically driven vibrators with 5 force output settings.
- Hinged aggregate spreader with removable 1/4″ AR400 plate for wear protection
- Screen cloth included (opening of your choice)
- 6’ x 18’ fines hopper with 1/4″ UHMW liners.
- Top deck overs chute with 1/4″ AR400 bolt-in liners in the bottom & up 6” on the sides.
- Bottom deck overs chute with 1/4″ AR400 bolt-in liners in the bottom & up 6” on the sides.
- Variable angle suspension.
- Top deck overs chute with 50/50 blending gates and bypass chute to the bottom deck overs conveyor.
- Fabricated from 10 ga. A36 plate steel with bolt-in 1/4″ AR400 liners in the bottom of the top deck overs chutes, up the sides, on both sides of the blending gates, and on the interior of the bypass chute.
- Painted (2) coats 2-part urethane –Yellow TCI White (handrails safety yellow)
Diesel Engine – Generator Set Includes:
- John Deere Tier III EPA certified 4 cycle, 4.58 liter 197 HP diesel engine complete with electric start, battery and charging alternator.
- Air cleaner, oil pump and full flow oil filter, Jacket water pump and radiator.
- Brushless, rotating field generator with digital control panel, and engine driven cooling fan.
- Fuel Tank – 150 gal. double wall fuel tank with 7.5-gallon overspill container, vents, gauges and decals.
- Folding walkway, handrails and ladder to access 1 side of Gen-Set
- “Dog house” style roof over Gen-Set
Electrical Includes:
-
- Square D fvnr starters with branch breakers and lockouts
- Telemecanique ATV71 series drive for the belt feeder
- 225-amp main breaker with a handle through the door
- Control transformer with breakers
- Illuminated e-stop, push-pulls, potentiometer, alarm button and keypad for the VFD to be mounted in the door
- 600 V, 400 A, Nema 3R, 3 ph. Transfer switch
- (3) Extra 20hp starters for customers off plant conveyor
Qty. 2, 24” x 14’ Channel Frame Hydraulically Folding Cross Conveyors for top deck and bottom deck overs*
- Drive Package – Dodge size #1 TA II reducer with a 5 HP motor
- Head Pulley – 12” x 26” with 3/8” herringbone lagging on 2-7/16” shaft
- Tail Pulley – 10” x 26” self-cleaning wing-type on a 2-7/16” shaft
- Bearings – SCM
- Idlers – CEMA C 5”
- Belting – 2-ply, 220#, 3/16 x 1/16, Grade 2, skived
- Belt Cleaner – Martin Pit Viper
30” x 25’ Channel Frame Rear Discharge Conveyor for screen thrus*
- Drive Package- Dodge size #2 TA II reducer with a 7.5 HP motor
- Head Pulley – 12” x 32” with 3/8” herringbone lagging on a 2-15/16” shaft
- Tail Pulley – 10” x 32” self-cleaning wing-type on a 2-7/16” shaft
- Bearings – SCM
- Idlers – CEMA C 5”
- Belting – 2-ply, 220#, 3/16 x 1/16, Grade 2 skived
- Belt Cleaner – Martin Pit Viper
